D .dll Calling Free Pascal .dll - D Files (module CmdLine)
Parsing Command Line Parameters Processing

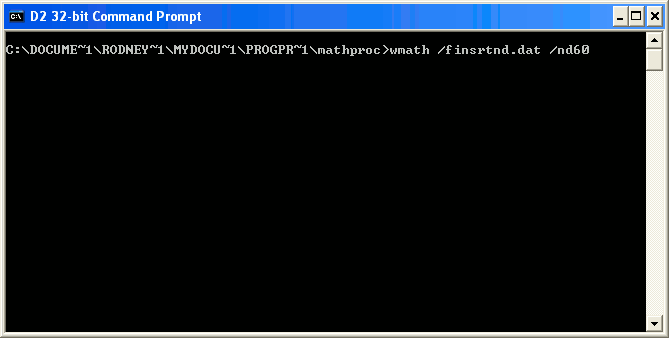

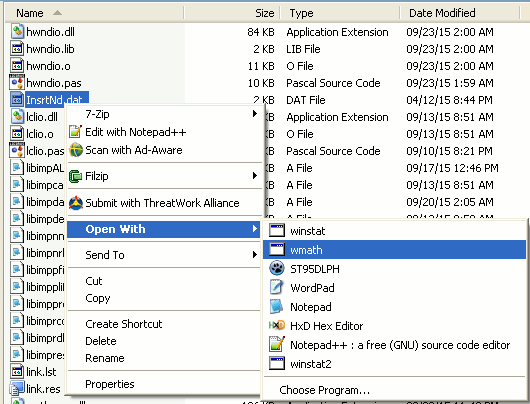

Command line parameters are optional arguments passed to a program at
start up. The first two images below show two methods for passing
these arguments.
D Windows programs' command line parameters are accessible as a
single LPSTR (Windows type - long pointer to string
- basically char*)
type
variable (3rd parameter passed to WinMain). It will be necessary
to break this string down into individual parameters. D module
CmdLine is meant to be a general purpose command line parameter parser
used by D main programs. Multiple D, Lazarus, and
Object Pascal programs call one or more of the functions/procedures on these two
pages.
These two pages demonstrates
command line parameter parsing using a
D .dll calling a Free Pascal .dll to achieve software reuse.
The
DMD32 D v2.066.0,
Free Pascal IDE 2.6.4,
and
Lazarus 1.2.6
compilers were used.
Module CmdLine calls Object Pascal Library ALlazrs, which
uses Lazarus unit NumRecGlbl.
This is the next step of command line argument parsing developed in
winstat - D Windows Statistical Analysis1
and
Lazarus, Free Pascal, Silverfrost FTN95, and Numerical Recipes1
(as well as an example of software reuse of Lazarus program
ST95DLPH's unit NumRecGlbl).
When using module CmdLine, can process either
Files:
(Notepad++ was used to create/edit the .d and .di files - the tabbing
and spacing will be off in MS Notepad)
CmdLine.dll - CmdLine.d dynamic link library
CmdLine.lib - CmdLine.dll import library - used when linking
D main program
allazrs.dll - ALlazrs.pas (and associated files) dynamic link
library, compiled with a modified
fpcdll.bat;
allazrs.lib - allazrs.dll import library (built with DMD's
implib) - used when linking CmdLine.dll
wmath
(more advanced and functional version of
Simulated Annealing Demonstration)
being invoked with
/f switch (input file) and /nd switch (number of nodes or
data points); can also process /f"insrtnd.dat" (quotes required
for file names with spaces).
Other available switches (not all switches are used by all programs):
/h help (can also use /?); no parameter
/ba branch angle;
Dawkins8 biomorphs2;
numeric parameter
/bl branch length; Dawkins8; numeric parameter
/dt time interval; Rossler3; numeric parameter
/g number of generations;
Iterated Map 23,
Cagann12,
Degaris12; numeric parameter
/m mutation frequency; Cagann1, Degaris1; numeric parameter
(available Pascal applications only)
/ns number of silent calculations / time interval; Rossler;
numeric parameter
/t1 start time; Rossler; numeric parameter
/t2 end time; Rossler; numeric parameter
/th tree height; Dawkins8; numeric parameter
Can use - as well as /;
can use upper case letters in switch; example:
wmath -Finsrtnd.dat -ND60
Obviously, this can be expanded - /t1 and /t2 can be used for any
program using start and end time,
/ba for angles (in degrees), etc.
(primary exported function in CmdLine.d - download and examine source
code for additional information;
screen shot taken from Notepad++)

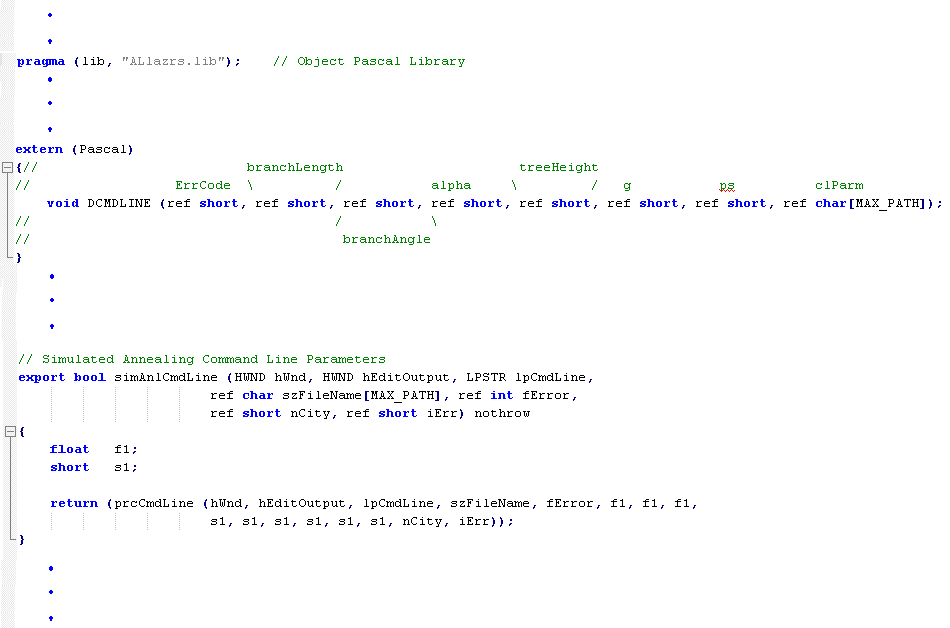

Selected Important CmdLine.d Statements:
pragma (...) declares external library.
extern (Pascal) {...} declares external
function(s)/procedure(s) - note that it does not specify which
library.
extern (<calling model>)
{
<returned data type> <external procedure name>
(<passed parameter data types list>);
}
void (or void*) indicates this is
a procedure (does not return value).
NOTE - using extern (Pascal) {...}
requires the arguments be passed to
DCMDLINE (...)
in reverse order.
(above partial excerpt comes from CmdLine.d)
Since the
D simulated annealing program
only requires two command line
parameters maximum (input file name and/or number of points),
decided to take approach of boolean function simAnlCmdLine (...)
above (not the most efficient but the simplest to avoid code duplication).
simAnlCmdLine (...)
defines two dummy variables, f1 and s1, using them as
'placeholders' in call to function prcCmdLine (...).
Compiling/Linking:
fpcdll ALlazrs
implib allazrs.lib allazrs.dll
dmd -c CmdLine.d -g
dmd CmdLine.obj CmdLine.def -g
implib /noi /system CmdLine.lib CmdLine.dll
(The above three lines can be placed in a batch file for easier compiling)

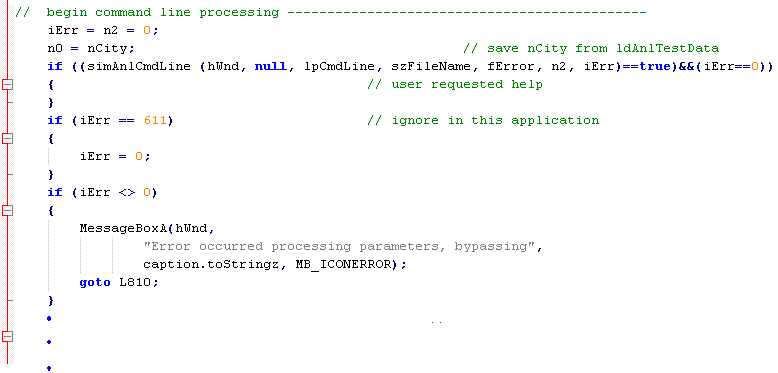

Calling module CmdLine:
(above partial excerpt comes from wmath.d)
Suggested usage for D main program processing application that may use
input filename and/or number of data points input parameters.
Recommend perform command line processing call before the
ShowWindow(...) call.
Common fError returned values:
-32768 : No file name supplied
0 :
archive file (read/write capable)
FILE_ATTRIBUTE_READONLY : file is read only
other values : error occurred
1. Press, William H., Brian P. Flannery, Saul A Teukolsky,
and William T. Vetterling (1986). Numerical Recipes: The Art of
Scientific Computing.
New York:Press Syndicate of the University of Cambridge.
2. Rietman, Edward (1994).
Genesis Redux: Experiments Creating Artificial Life. Windcrest (McGraw-Hill).
Dawkins8 biomorphs - resembles both L-systems and iterated function systems;
ported from MS-DOS Turbo Pascal main program to Object
Pascal Library (genecode.dll and dawkins8.dll); called from
Pascal Windows program plife and D Windows program wlife.
Cagann1 - simple genetic algorithm neural network, also has some cellular
automata properties; ported from MS-DOS Turbo Pascal main
program to Object Pascal Library (cagann1.dll); called from Pascal
Windows program plife
Degaris1 - simple genetic algorithm neural network; ported from MS-DOS
Turbo Pascal main program to Object Pascal Library (degaris1.dll);
called from Pascal Windows program plife
3. Rietman, Edward (1993). Creating Artificial Life: Self-Organization.
Windcrest (McGraw-Hill).
Rossler - 3D Strange Attractor; ported from GW-BASIC to a procedure in
D module alife; called from D Windows program wlife
Iterated Map 2 - Iterated nonlinear system; ported from GW-BASIC to a
procedure in D module alife; called from D Windows program
wlife
