mathproc.dll Miscellaneous FORTRAN Mathematical Subprograms
(Point Rotation, Triangular Segment Area, Signum, Synthetic Division, Quadratic Roots, Cubic Polynomial Roots)
(Includes Download)

These are nine FORTRAN subprograms whose source code has been unpublished in FORTRAN (as far as I know), extracted from mathproc.dll, and are called by either D procedures in dnrprocs.dll or Pascal procedures in missle02.dll.

Download mathaux.for source code

1. REAL FUNCTION XROTATECCW (X, Y, ALPHA) RESULT (U)
   Rotation counterclockwise about the origin through an angle ALPHA
   (many systems consider counterclockwise rotation to be positive)
   Input: X [X coordinate prior to rotation], Y [Y coordinate prior to rotation], ALPHA [rotation angle, radians]
   Returns rotated X coordinate
   called by FlghtSrfcArea (...) in Pascal library missle02 (calculate fin/wing/stabilizer 'wetted' surface area)
2. REAL FUNCTION XROTATECW (X, Y, ALPHA) RESULT (U)
   Rotation clockwise about the origin through an angle ALPHA
   (many systems consider clockwise rotation to be negative)
   Input: X [X coordinate prior to rotation], Y [Y coordinate prior to rotation], ALPHA [rotation angle, radians]
   Returns rotated X coordinate
   called by Gabor2D (...) in D module dnrprocs and FlghtSrfcArea (...) in Pascal library missle02
3. REAL FUNCTION YROTATECCW (X, Y, ALPHA) RESULT (V)
   Rotation counterclockwise about the origin through an angle ALPHA
   Input: X [X coordinate prior to rotation], Y [Y coordinate prior to rotation], ALPHA [rotation angle, radians]
   Returns rotated Y coordinate
   called by FlghtSrfcArea (...) in Pascal library missle02
4. REAL FUNCTION YROTATECW (X, Y, ALPHA) RESULT (V)
   Rotation clockwise about the origin through an angle ALPHA
   Input: X [X coordinate prior to rotation], Y [Y coordinate prior to rotation], ALPHA [rotation angle, radians]
   Returns rotated Y coordinate
   called by Gabor2D (...) in D module dnrprocs and FlghtSrfcArea (...) in Pascal library missle02
5. REAL FUNCTION TRIAREA (X1, X2, X3, Y1, Y2, Y3) RESULT (A)
   Calculate area of triangular segment from its vertices coordinates; uses determinant
   Input: X1, X2, X3 [vertices' X coordinates], Y1, Y2, Y3 [vertices' Y coordinates]
   Returns triangular segment area
   called by ellipseSegArea (...) in Pascal library missle02 (calculate elliptical segment area)
6. INTEGER*2 FUNCTION SIGNUM (R) RESULT (ISGN)
   Returns -1 if R<0, 0 if R=0, 1 if R>0
   called by SnglRlCubcRt (...) in D module dnrprocs
7. SUBROUTINE QUADROOT (A, B, C, ROOT1, ROOT2, DISC, IERR)
   Quadratic Roots; A*X² + B*X + C = 0
   Input: A, B, C
   Output: ROOT1, ROOT2, DISC
   If roots real, then roots are ROOT1 and ROOT2
   If roots imaginary (IERR = 105), then roots are ROOT1 + DISCi and ROOT2 - DISCi - could then use FORTRAN's CMPLX (ROOT1, DISC) and CMPLX (ROOT2, -DISC) to load an actual COMPLEX variable.
   The larger root is returned in ROOT1.
   called by polyRoot (...) in D module dnrprocs
8. SUBROUTINE SYNDIV (N, C0, C1, ROOT1, IERR)
   Synthetic Division - "Synthetically" Divide polynominal coefficient array C0 by ROOT1 Giving polynominal coefficient array C1
   C0(1)*X^N-1 + C0(2)*X^N-2 + ⋯ + C0(N)
   Input: N [number of coefficients (power of polynomial + 1)], array C0, ROOT1 [one known root of polynominal]
   Output: array C1
   C1(1)*X^N-2 + C1(2)*X^N-3 + ⋯ + C1(N-1)
   called by polyRoot (...) in D module dnrprocs
9. SUBROUTINE CUBCROOT (A1, A2, A3, ROOT1, ROOT2, ROOT3, Q, R, IERR)
   Cubic Polynomial Roots - X³ + A1*X² + A2*X + A3 = 0
   (Presumed that X³ coefficient is 1)
   Input: A1, A2, A3
   Output: Q, R (ROOT1, ROOT2, ROOT3 if 3 real roots; if 1 real root and 2 imaginary roots, IERR set to 105)
   Q, R used internally if 3 real roots; used externally if 1 real root and 2 imaginary roots.

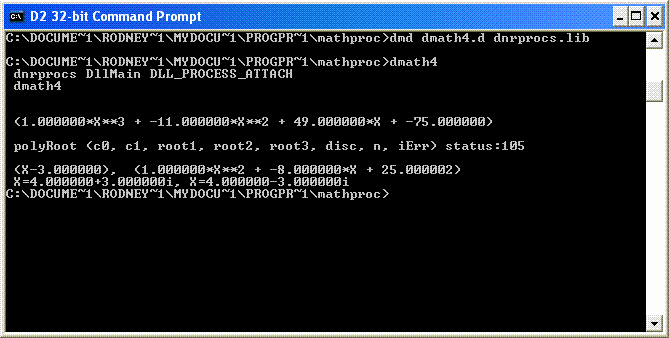

   (if 2 imaginary roots, D procedure SnglRlCubcRt in D module dnrprocs can be called to compute the single real root; set coefficient array elements C0(1)=1, C0(2)=A1, C0(3)=A2, C0(4)=A3, and call SYNDIV to get the coefficient array C1 for the Quadratic Equation - A=C1(1), B=C1(2), C=C1(3); QUADROOT (...) can then be called; this is all done by D module dnrprocs procedure polyRoot (...))





Creating FORTRAN .dll Project:

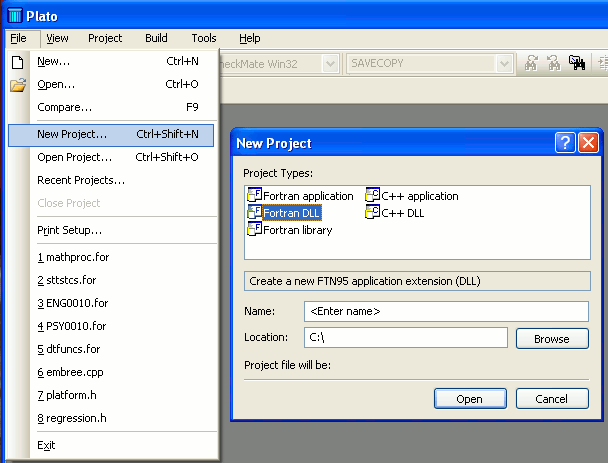

To create a SilverFrost .dll, create a new project of project type Fortran DLL. File New Project Project Types:Fortran DLL Name: enter project name (this will be the name of the project file, with file extension .ftn95p, and to make things simple, the name of the FORTRAN source file) Location: browse to the directory where to save file (can only have one project per directory) mathaux.for can then be copied and pasted.
